SUPRAdisc™ II HP 16 inch modules

Double-layer module for two-step filtration in one housing, based on "inside-outside" separator technology.

What is SUPRAdisc II HP?​



The SUPRAdisc II HP modules are providing a two step filtration in one module based on the  "Inside-Outside Separator" concept. The modules use a coarse and a fine sheet in combination which allows for coarse and fine filtration in one housing. This Double Layer concept is often used where small batches do not allow to filter through 2 housings. ​





Why SUPRAdisc II HP?





SUPRAdisc II Modules eliminate constructional weaknesses of classical Lenticulars in single cell design using inside-outside separator technology in a filter block design.​

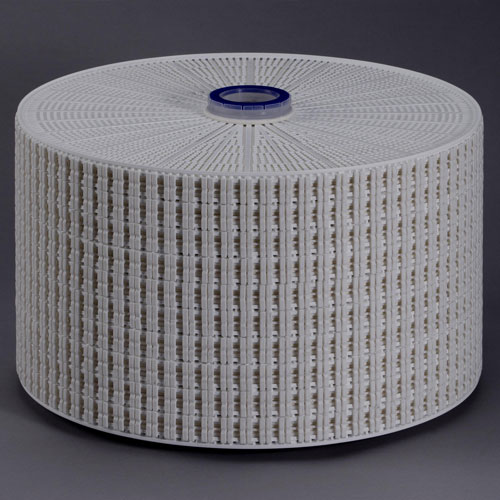

SUPRAdisc II 16 inch HP module double layer configuration





Feature  Benefit Value









New design with separator technology



Rigid construction with high package density
  • Increased process safety
  • Reduced downtime of the filter line
No sheet damages during venting of the housing
  • Reduced OPEX
  • Increased cost efficiency
  • Improved availability of the filter line
No cell deformation after steam sterilization
  • Process safety
Easy and safe handling
  • Reduced OPEX
  • Improved availability of the filter line



Drainable, low hold-up volume assembly

16” SUPRAdisc II provides 5.0m2     filter area
  • Higher flowrate/h per housing allows volume without investment
Reliable filtration
  • Reduced OPEX



Backflush option

Improved filter performance
  • Reduced OPEX
Higher total throughput
  • Reduced OPEX







SUPRAdisc housing design

In comparison to plate and frame filters:



  • Low dead volumes
  • Reduced cleaning and water volumes needed
  • Heat up of the housing is faster and less energy consuming


  • Reduced OPEX
  • Reduced product losses

Classical DE Sheet Media

Meet the entire range of removal requirements in the food and beverage industry.. Available in multiple grades suitable for microbial reduction and applications requiring fine, clarifying and coarse filtration.
Meet the entire range of removal requirements in the food and beverage industry.. Available in multiple grades suitable for microbial reduction and applications requiring fine, clarifying and coarse filtration.
Read more

SUPRAdisc XD Series​



  • Meets the entire range of removal requirements in the food and beverage industry.
  • Available in multiple grade variations suitable for microbial reduction and applications that requiring fine, clarifying and coarse filtration.

Ion Reduced Sheet Media

Sheets are acid washed for reduced Calcium and Magnesium contents​. For distilled spirits filtration and ion sensitive products to avoid precipitation of Calcium and Magnesium sulfate after filtration.
Sheets are acid washed for reduced Calcium and Magnesium contents​. For distilled spirits filtration and ion sensitive products to avoid precipitation of Calcium and Magnesium sulfate after filtration.
Read more

SUPRAdisc CD-Series



  • Undergo a proprietary treatment that results in extremely low levels of extractable ions making them the ideal solution for distilled spirits applications. A visually bright finished product free from visible particles is one of the main objectives of spirits filtration. Components (C12-16) fatty acid esters, terpenes, proteins or their complex compounds with metals and/or phenols) of some spirits may precipitate if calcium ion levels are too high. Magnesium may also cause precipitations in tannin containing spirits like whisky and brandy. Standard filter sheets contain small quantities of these extractable ions from the raw materials.
