Depth Filtration

What is depth filtration and why is this technology used?

Due to process conditions and raw materials, all manufacturing processes in the Food & Beverage industry related to the production of clear and stable products have unexpected variances in their turbidity and colloidal load. Those variances can have a massive negative impact on the performance of installed filters, especially membrane filters that are installed prior to bottling.

Microbial spoilage contamination is another prevalent concern for most food and beverage manufacturers. The potential impact it can cause may lead to product recalls and compromise consumer safety.

Depth filtration is the ideal solution for such conditions in these applications. Depth filtration utilizes a cellulose-based filter media to trap suspended particles and separate them from the carrying fluid.

Where can I use Depth Filtration Technologies?

Depth filtration encompasses a variety of filter sheet media that can be utilized for:

Turbidity removal, from coarse to fine particles
Polishing filtration
Colloidal removal
Chill haze removal
Removal of microbial spoilage/ Reduction of microorganism (yeast, bacteria, mold)

Depth Filters & Depth Filter Sheets For F&B Applications

SUPRAdisc™
SUPRApak™
Seitz® Sheets
Housings

SUPRAdisc™ II

The SUPRAdisc II modules are a design optimization of the traditional "Single Cell" modules which were launched on the market in the 1980s.
With the newly developed "Inside-Outside Separator“ concept Pall has created a block module design which eliminated most of the serious disadvantages in the design of the "Single Cell" modules.

SUPRAdisc II HP

The SUPRAdisc II HP modules provide two step filtration in one module. The modules use a coarse and a fine sheet in combination which allows to do coarse and fine filtration in one housing.
SUPRAdisc II Modules eliminate constructional weaknesses of classical Lenticulars in single cell design using inside-outside separator technology in a filter block design.

SUPRAdisc 1 HP

The SUPRAdisc 1 filter modules are Pall´s generation one modules, based on the classical single cell design developed in the 1980s.
The SUPRAdisc 1 module design is used to produce 12” SUPRAdisc 1 HP double layer lenticulars equipped with classical DE sheets and ion reduced DE sheets.

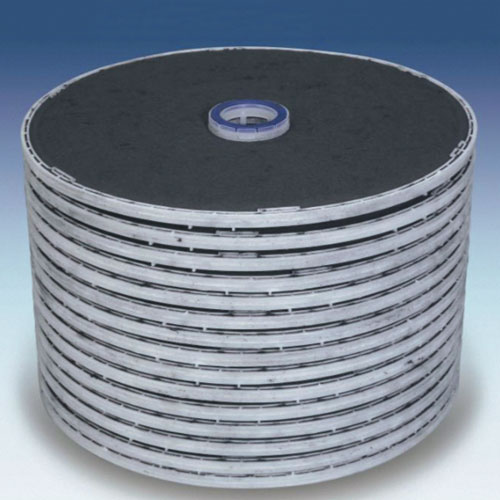

SUPRAdisc 1 AKS

The SUPRAdisc 1 filter modules are single filter cells incorporating 2 sheets and a drainage core, sealed by injection molding on the outer diameter are then stacked and combined with a flat gasket or bajonett double-O-ring adapter.
The design of the SUPRAdisc 1 module is utilized to manufacture our activated carbon sheet AKS4 media in 12" and 16" sizes.

SUPRApak

SUPRApak modules are Pall’s newest innovation in depth filtration with an entirely unique design and flow configuration. SUPRApak modules consist of filter sheet material wrapped around a central permeable core with external straps that attach the sheet material to the core.

The sheet material is punched with an intricate pattern of feed and filtrate channels which direct fluid flow through the module. The unfiltered fluid enters the module from the outside through feed channels.

Learn More

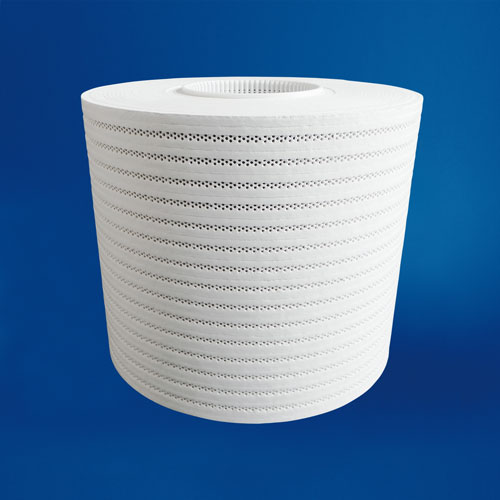

SUPRApak Plus

SUPRApak Plus is the second generation of our SUPRApak filter series that uses advanced sealing technology to seal unfiltrate to filtrate channels.

Meet the entire range of removal requirements in the food and beverage industry available in multiple grades suitable for applications requiring fine, clarifying and coarse filtration.
