Sour Water Stripping (SWS)

Ensure your sour water stripping reliably supports your unit production quotas and your water quality requirements.

What is Sour Water Stripping?

Sour water stripping is used to remove ammonia (NH3) and hydrogen sulfide (H2S) from sour water streams coming from many unit operations to condition it for discharge or reuse within the refinery. In a complex refinery, most of the sour water comes from distillation, fluid catalytic cracking, catalytic reforming, coker and acid gas removal units, with many other operations contributing to the balance. The different streams are collected in a surge tank for centralized processing via a heat exchanger and a single stripper column, or two in series.



Reasons For Sour Water Stripping Unit Downtime:



A combination of pH control and heat, from direct injection steam or reboiler drives off the ammonia and hydrogen sulfide. The presence of solids and hydrocarbons (‘oils’) are major contaminants that cause heat exchanger, stripper column, and reboiler fouling. The impact is loss of SWS capacity that may bottleneck refinery production rates, drive the need for unscheduled SWS shutdowns and cleanouts leading to additional production losses, high maintenance costs and increased worker safety issues from exposure to the highly volatile H2S in the sour water system.



Oil contamination of the stripper also leads to a range of problems downstream. One is oil carryover in the acid gas stream heading to the sulfur plant, leading to sulfur plant reliability issues and increased risk of fires from oil coking of the reactor beds. Another is excess oil in the stripped water to the water treatment plant creating an overload condition resulting in environmental risk and/or the need to reduce refinery capacity.



Sour Water Stripping Process Challenges & Solutions



Challenge Solution

Effective Removal of Particulate -

Meet daily refinery unit production targets by meeting SWS H2S, NH3 and capacity treatment targets.

Improve refinery productivity targets and sulfur plant reliability and SWS cost control by effective removal of particulate and oil contaminants that are fouling the SWS reboiler and column trays and the acid gas stream affecting SWS and sulfur plant capacity and reliability that back up refinery unit operations

Effective Removal of Oils –

Ensure sulfur plant and water treatment plant reliability through reliable removal of oils from the acid gas and stripped sour water streams.

Cyclonic separators will not effectively remove the oils:



  • especially on stable emulsions, due to the fine oil droplet size resisting separation.
  • under varying sour water flow conditions that cause loss of inertial separation efficiency. Use of recycle loops to main inertial efficiency greatly increase initial capex and system complexity, leading to high maintenance and poor reliability of oil removal.

Reduce Labor & Maintenance Costs

Reduce SWS labor and maintenance costs from particulate and oil fouling.

High efficiency prefilters and AquaSep® EL liquid/liquid coalescers reliably remove particulate and oils from stable sour water emulsions, with 0% to 100% turndown, ensuring  maintained SWS capacity and reliability.



The below diagram and table shows key applications and recommendations:

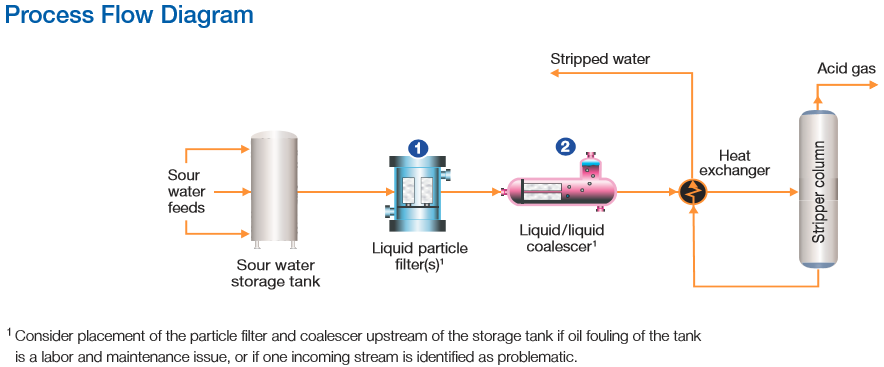

Sour Water Treatment Process flow Diagram

Key Applications and Recommendations For Sour Water Stripping Process (other applications not shown)



 ApplicationCustomer BenefitsShop Product
1.

Prefiltration prior to liquid/liquid coalescer

Improves the efficiency and life of the liquid/liquid coalescer



Improves SWS production, reliability, safety and opex by controlling particulate fouling of the heat exchanger and stripper reboiler and trays

Vector™ High Flow filtersUltipleat® High Flow filters, or coreless filters.
2.

Hydrocarbon removal

Improves SWS reliability, safety and opex challenges by controlling oil fouling of the heat exchanger and stripper reboiler and trays



Improves sulfur plant reliability and safety by removing oil carryover into the reactor beds



Freedom from oil overload to the water treatment plant that can create an environmental hazard and/or a refinery capacity limitation.

AquaSep® EL liquid/liquid coalescer in horizontal configuration



Contact one of our specialists to find out more, or click below to shop the products.



Pall Products to Improve Efficiency Of Your Sour Water Stripping Process

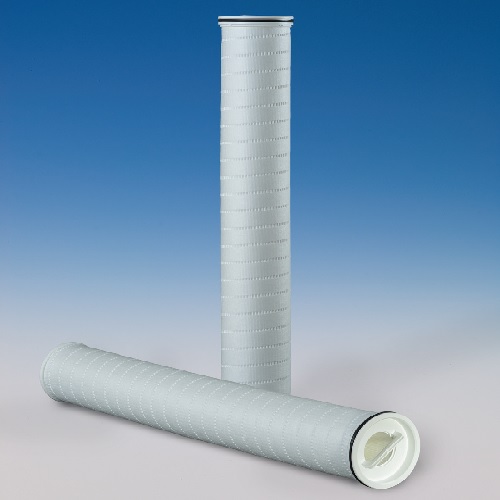

Vector™ High Flow Series Filter Cartridges



For coarse, large volume particle filtration

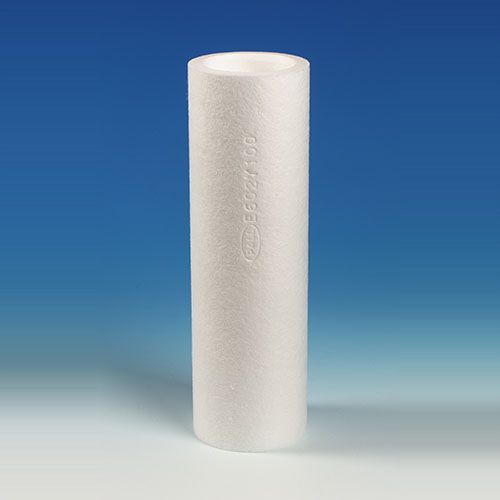

Profile® Coreless Filter Elements



Providing a convenient, cost-efficient and environmentally friendly solution for high flow rate applications.

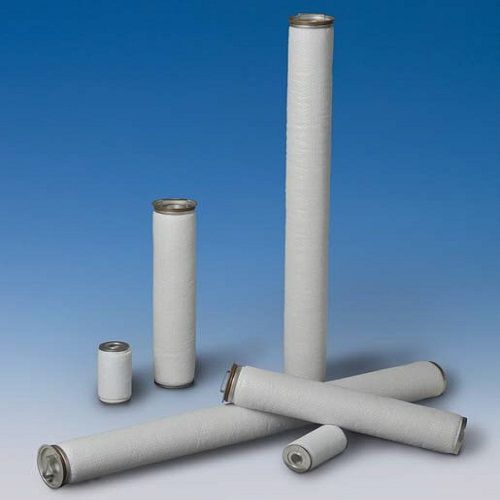

AquaSep® EL Coalescers



Effectively separate liquid/liquid dispersions on medium, coarse, or higher solid emulsions





Video: Sour Water Stripping Solution



Watch our video below to find out more, or speak to one of our experts for more information.

For more information on improving the efficiency of your processes, contact our team of filtration experts.
