Electrostatic Discharge Varnish Removal

For Turbine Lubrication Systems

Beware the Electrostatic Storm in your fluid system



With demand for higher turbine speeds, increased operating pressures, and more demanding duty cycles, using highly refined, lower conductivity, finely filtered fluids, more and more Power Plant operators are experiencing the impact of electrostatic discharge (ESD) and the formation of ‘varnish’ in their turbine lubrication and hydraulic control systems



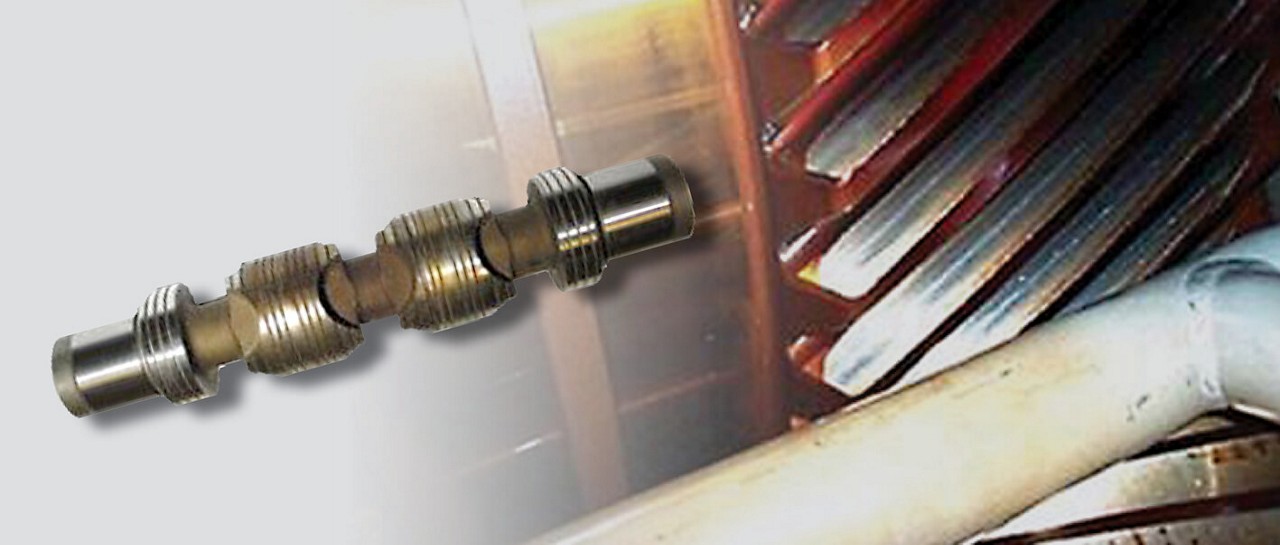

Varnish is an insoluble film deposit that forms on surfaces inside fluid systems, including pipes, tanks, bearings, heat-exchangers, and servo-valves. These deposits can cause operation problems, clogging valves and coating bearings to make them less effective and ultimately to fail.



Why is electrostatic discharge happening?

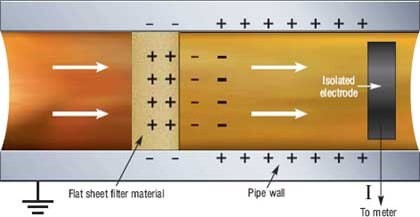

When two dissimilar materials are placed in contact and then separated in a sliding motion, it results in electron transfer between the two materials and the creation of static. This occurs when synthetic fluids passing through synthetic filter media, generating electrostatic charges, sometimes referred to as triboelectric charging.





The charge, if not dissipated, can build to the point where it causes high voltage sparks to jump to the closest metallic point, burning and degrading the oil, often blasting holes through filter media and damaging system components. And damaged parts cannot do their jobs.



Like a lightning bolt in your fluid system.



For a number of years, many ignored this phenomenon. But as problems have worsened, people are paying more attention.



Standard glass-fiber media installed in the lube system can potentially experience severe electrostatic-induced damage in a short time. Heat exchangers, flowmeters, valves, filter housing, and filter elements can all experience damage. Also, as fluids can break down, resulting in thermal degradation/varnish formation, premature additive depletion, and reduced fluid service life. Electrical arcing can also pose a safety hazard, causing injury, fires or even explosions.



How would I know it’s happening?



  • Stand beside a filter where discharge is occurring, you will hear a harsh knocking, crackling or pinging sound from within
  • You may notice burn marks on the filtration medium when changing out filters
  • Most likely you will see the visible results of ESD with all wetted surfaces of pipes and components being coated in a resinous film coating



Modern turbine lube oils are highly refined API group II oils, meaning they are less polar and have low conductivity (5-40 pS/m range). Electrostatic discharges result in changes in the chemical composition of the fluids, changing nonpolar molecules to polar molecules, which act as precursors to the formation of varnishes.





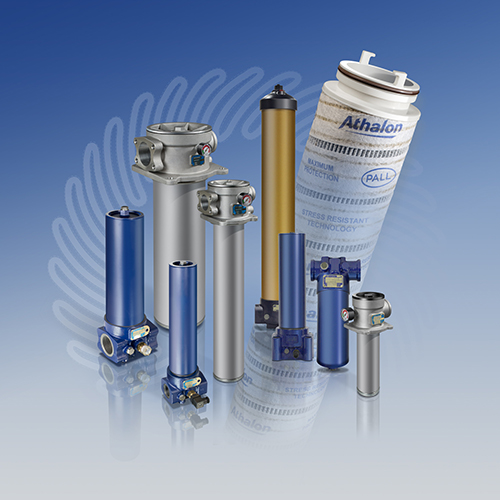

Electrostatic Discharge & Varnish White Papers
  • Overcoming Electrostatic Charge Generation
